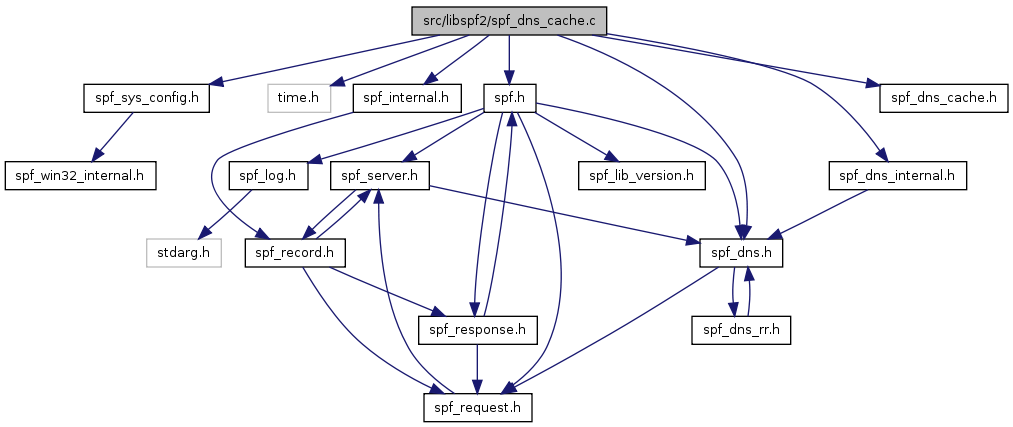

#include "spf_sys_config.h"#include <time.h>#include "spf.h"#include "spf_dns.h"#include "spf_internal.h"#include "spf_dns_internal.h"#include "spf_dns_cache.h"
Go to the source code of this file.
Data Structures | |
| struct | SPF_dns_cache_bucket_t |
| struct | SPF_dns_cache_config_t |
Defines | |
| #define | hash(h, s, a) crc32str(a,s,h->max_hash_len) |
Functions | |
| SPF_dns_server_t * | SPF_dns_cache_new (SPF_dns_server_t *layer_below, const char *name, int debug, int cache_bits) |
| void | SPF_dns_cache_set_ttl (SPF_dns_server_t *spf_dns_server, time_t min_ttl, time_t err_ttl, time_t txt_ttl, time_t rdns_ttl) |
| void | SPF_dns_set_conserve_cache (SPF_dns_server_t *spf_dns_server, int conserve_cache) |
Variables | |
| const unsigned int | crc_32_tab [256] |
This original description from Wayne is no longer true:
This is really little more than a proof-of-concept cache.
The cache size is fixed and uses the CRC-32 function as a hash generator. Little is done about hash collisions, no alternate hash functions, no buckets, no linked lists, etc. There is a small reclaim list and if you add multiple DNS cache layers of different sizes you get slightly different hash functions. (The CRC-32 function was chosen because I had a copy handy, it is pretty fast, and single bit changes are guarenteed to give a different hash. So, mx1.foo.com and mx2.foo.com will not collide)
Definition in file spf_dns_cache.c.
| #define hash | ( | h, | |||
| s, | |||||
| a | ) | crc32str(a,s,h->max_hash_len) |
Definition at line 235 of file spf_dns_cache.c.
| SPF_dns_server_t* SPF_dns_cache_new | ( | SPF_dns_server_t * | layer_below, | |
| const char * | name, | |||
| int | debug, | |||
| int | cache_bits | |||
| ) |
These routines take care of creating/destroying/etc. the objects that hold the DNS layer configuration. SPF_dns_server_t objects contain malloc'ed data, so they must be destroyed when you are finished with them, or you will leak memory.
cache_bits determines the size of the DNS cache. The cache will be 2^cache_bits entries large.
If debugging is turned on, information about cache hits and misses will be generated.
Definition at line 487 of file spf_dns_cache.c.
References SPF_dns_server_struct::add_cache, SPF_dns_cache_config_t::cache, SPF_dns_cache_config_t::cache_lock, SPF_dns_cache_config_t::cache_size, SPF_dns_cache_config_t::conserve_cache, SPF_dns_server_struct::debug, SPF_dns_server_struct::destroy, SPF_dns_cache_config_t::err_ttl, SPF_dns_server_struct::get_exp, SPF_dns_server_struct::get_spf, SPF_dns_cache_config_t::hash_mask, SPF_dns_server_struct::hook, SPF_dns_server_struct::layer_below, SPF_dns_server_struct::lookup, SPF_dns_cache_config_t::max_hash_len, SPF_dns_cache_config_t::min_ttl, SPF_dns_server_struct::name, NULL, SPF_dns_cache_config_t::rdns_ttl, SPF_ASSERT_NOTNULL, SPF_error, and SPF_dns_cache_config_t::txt_ttl.
Referenced by SPF_server_new().
| void SPF_dns_cache_set_ttl | ( | SPF_dns_server_t * | spf_dns_server, | |
| time_t | min_ttl, | |||
| time_t | err_ttl, | |||
| time_t | txt_ttl, | |||
| time_t | rdns_ttl | |||
| ) |
By default, the caching DNS layer uses the Time To Live (TTL) values that are obtained from the actual DNS Resource Records (RR). However, because we know more about the situation than general caching DNS resolvers, we can adjusted the TTLs to be more appropriate for the email system. For example, since DNS errors will cause a 4xx temporary failure to be returned by the MTA, and the RFCs require the sending MTA to wait a while before it tries to resend the message, we can cache DNS errors for a while. General caching resolvers can't know if the next request needs the latest information about a name server being down, so it doesn't cache this information.
The caching DNS layer allows the following minimal TTL values:
min_ttl The absolute minimum TTL value in all cases.
err_ttl The minimum TTL value to use when there is a DNS error.
txt_ttl The minimum TTL value to use when a TXT query is done. In the case of SPF, these are the SPF records and the explanation records. This TTL value is used even when no record is found, so domains that haven't set up SPF records won't be constantly queried. Since SPF records are intended to not be changed often, this value can be fairly large.
rdns_ttl The minimum TTL value to use when looking up information in the reverse DNS tree. This applies to both valid results, and when an error is detected.
Note that more than one of these TTL values may apply. A TXT RR lookup that fails will have a TTL that is the largest of the min_ttl, the err_ttl and the txt_ttl values.
Definition at line 555 of file spf_dns_cache.c.
References SPF_dns_cache_config_t::cache_lock, SPF_dns_cache_config_t::err_ttl, SPF_dns_server_struct::hook, SPF_dns_cache_config_t::min_ttl, NULL, SPF_dns_cache_config_t::rdns_ttl, SPF_ASSERT_NOTNULL, and SPF_dns_cache_config_t::txt_ttl.
| void SPF_dns_set_conserve_cache | ( | SPF_dns_server_t * | spf_dns_server, | |
| int | conserve_cache | |||
| ) |
The caching DNS layer can try to conserve it's cache to only those queries that will likely to be used often. If told to conserve the cache entries, it will not cache queries that were constructed from things like the client IP address or the local part of the envelope-from email address. Such information may well be cached by the general DNS resolver, so the answers may be quickly obtained anyway.
By default, caches with fewer than 4k entries (12 bits) will try to conserve the cache entries, but larger caches will not. This is just a guess though. In reality, it will depend a great deal on how active your mail server is and what the typical TTL values that you get from the particular DNS records you query are.
Definition at line 577 of file spf_dns_cache.c.
References SPF_dns_cache_config_t::conserve_cache, SPF_dns_server_struct::hook, NULL, and SPF_ASSERT_NOTNULL.
| const unsigned int crc_32_tab[256] |
Definition at line 162 of file spf_dns_cache.c.
